G310GS 16 (K02) | Accessories

TOPCASE 30I

Diagram #77_0708 | 14 parts

100%

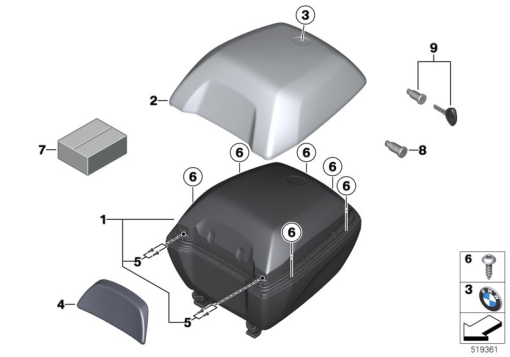

G310GS 16 (K02) TOPCASE 30I exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
1
77 43 9 829 379
TOP CASE, 30-LITRE-
-
77 43 8 549 130
INSIDE POCKET, TOP CASE 2, SMALL - 30L-
2
77 43 8 548 308
OUTER SHELL, TOPCASE COVER, PRIMED-
77 43 8 553 127
OUTER SHELL, TOPCASE COVER - GRANIT-GREYAlternative for position 2-
77 43 8 555 607
OUTER SHELL, TOPCASE COVER - RACING-REDAlternative for position 2-
6
07 14 7 698 893
SELF TAPPING SCREW - M4X12-
-
77 43 9 457 027
OUTER SHELL, TOPCASE COVER - LIGHTWHITE-
-
07 14 7 698 893
SELF TAPPING SCREW - M4X12-
-
77 44 8 414 337
OUTER SHELL, TOPCASE COVER - BLACK-STORM-
-
07 14 7 698 893
SELF TAPPING SCREW - M4X12-
-
31 42 7 708 518
BADGE - D=45MM-
-
51 16 9 151 916
FILLISTER HEAD SCREW-
6
07 14 7 698 893
SELF TAPPING SCREW - M4X12-
9
51 25 7 688 957
LOCK CYLINDER WITH KEY-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
