Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 53 8 388 827 | SET: SET HOLDER BMW MOTORRAD NAVIGATOR | - | |
61 12 8 388 829 | ADAPTER FOR WIRING HARNESSAlternative for position 1 | - | ||
| 4 | 32 71 7 652 161 | SCREW - M8X30 | - | |
| - | 65 90 8 563 858 | COUNTERPART FOR CLAMPING PIECE | - | |
| - | 65 90 8 525 238 | CLAMPING | - | |
| 4 | 65 90 8 559 633 | AXLE | - | |
| 5 | 46 63 7 686 286 | FLANGED CAP SCREW - 5X16-A2-80 | - | |
| 6 | 71 60 7 680 518 | SPACER BUSH - 5,3X8X9 | - | |
| 7 | 63 12 8 396 050 | RUBBER GROMMET | - | |
| 8 | 07 11 9 908 219 | WASHER - ISO 7094-5-A2 | - | |
| 9 | 32 71 7 652 161 | SCREW - M8X30 | - | |
| 10 | 61 12 8 388 829 | ADAPTER FOR WIRING HARNESS | - |

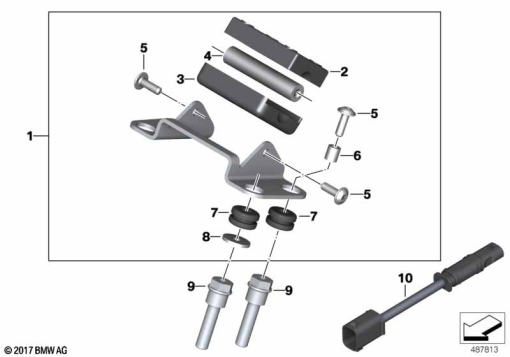

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
