G310GS 16 (K02) | Accessories

HAND PROTECTOR

Diagram #77_1121 | 3 parts

100%

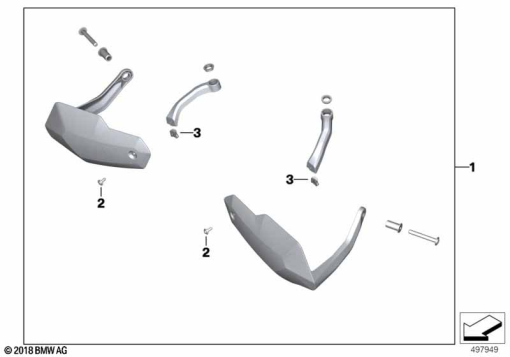

G310GS 16 (K02) HAND PROTECTOR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
77 32 2 459 287
SET: SET OF HAND PROTECTORS1
2
46 63 8 521 653
BODY SCREW WITH SHOULDER - M5X14,5-A2-701
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
