F900GS 22 (K81) | Vehicle Trim

REP.KIT F LOCK CYLINDER

Diagram #51_3316 | 8 parts

100%

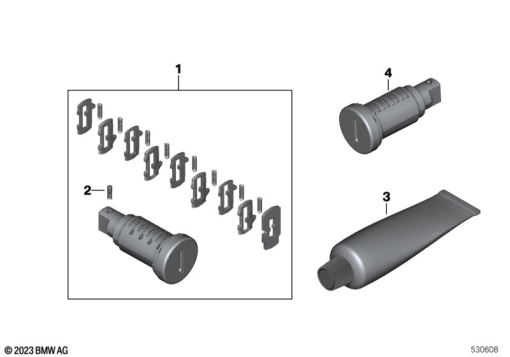

F900GS 22 (K81) REP.KIT F LOCK CYLINDER exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
51 25 7 698 202
SET: REP.KIT F LOCK CYLINDER-
77 49 8 544 517
SET: REP.KIT F LOCK CYLINDERAlternative for position 1-
51 25 8 393 958
SET: REP.KIT F LOCK CYLINDERAlternative for position 1-
51 25 7 698 204
SET: REP.KIT F LOCK CYLINDERAlternative for position 1-
51 25 7 698 204
SET: REP.KIT F LOCK CYLINDERAlternative for position 1-
3
83 23 2 152 082
GREASE MI-SETRAL-43 N - 50G-
4
51 25 7 681 200
LOCK CYLINDER WITH VIN CODE-
51 25 7 681 200
LOCK CYLINDER WITH VIN CODEAlternative for position 4-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
