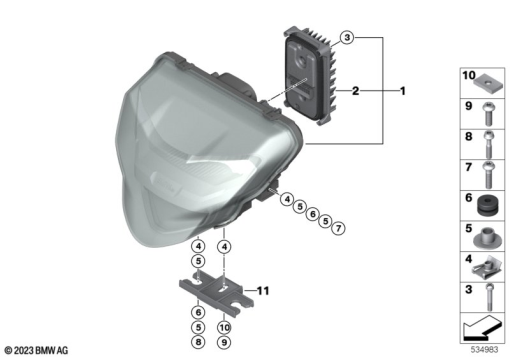

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 7 107 826 | LED HEADLIGHT | 1 | |
| 2 | 63 12 8 557 260 | CONTROL UNIT FOR LED HEADLIGHTS | 1 | |
| 4 | 07 14 7 693 887 | C-CLIP NUT - M6 | 1 | |
| 5 | 63 12 8 557 218 | FLANGE SLEEVE, STEEL | 1 | |
| 6 | 63 12 8 533 690 | RUBBER GROMMET | 1 | |
| 7 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | 1 | |
| 8 | 11 13 8 562 751 | INNER HEX BOLT - M6X30-8.8-ZNNIV | 1 | |
| 9 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 10 | 63 12 1 600 288 | ADJUSTING PLATE | 1 | |
| 11 | 63 12 7 108 103 | HOLDER HEADLIGHT | 1 |
