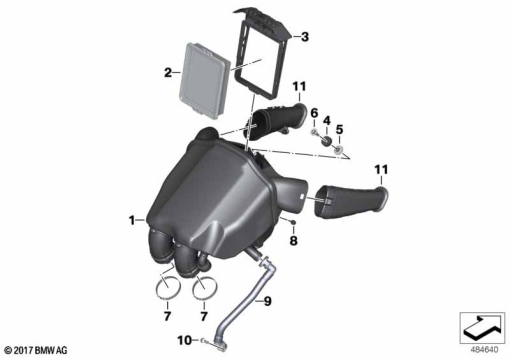

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 404 342 | INTAKE MUFFLER | - | |
| 2 | 13 72 8 561 572 | AIR CLEANER | - | |
| 3 | 13 71 8 561 571 | FILTER FRAME | - | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 5 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 6 | 07 12 9 906 803 | ISA SCREW WITH WASHER - M6X25-U2-8.8 | - | |
| 7 | 11 61 7 680 689 | MUFFLER CLAMP - D=61MM, B=9MM | - | |
| 8 | 51 16 8 161 558 | RUBBER BUFFER | - | |
| 9 | 11 15 8 562 999 | HOSE CRANKCASE | - | |
| 10 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 11 | 13 71 8 558 947 | INTAKE SNORKEL, LEFT | - | |
13 71 8 558 948 | INTAKE SNORKEL, RIGHTAlternative for position 11 | - |
