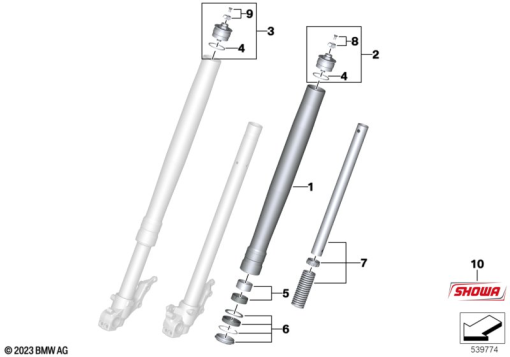

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31425A71345 | FIXED OUTER FORK TUBE, BLACK | - | |
31425A71463 | STANCHIONAlternative for position 1 | - | ||
| 2 | 31425A71333 | LOCKING PLUG LEFT | - | |
31425A71335 | LOCKING PLUG LEFTAlternative for position 2 | - | ||
| 3 | 31425A71334 | LOCKING PLUG RIGHT | - | |
31425A71336 | LOCKING PLUG RIGHTAlternative for position 3 | - | ||
| 4 | 31425A713A1 | O-RING - 44.7X2.4 | - | |
| 5 | 31 42 8 358 641 | SET: BUSH BEARING SET | - | |
31425A713A4 | SET: SET OF SLIDING SLEEVESAlternative for position 5 | - | ||
| 6 | 31 42 8 358 657 | SET: SET OF GASKETS | - | |
31425A713A3 | SET: SET OF GASKETSAlternative for position 6 | - | ||
| 7 | 31425A71339 | SET: KIT, SPRING | - | |
31425A71340 | SET: KIT, SPRINGAlternative for position 7 | - | ||
| 8 | 31425A77EA5 | SET: SET ADJUSTMENT WHEELS | - | |
| 9 | 31425A77EA4 | SET: SET ADJUSTMENT WHEELS | - | |
| 10 | 31425A78DD0 | STICK-ON LABEL | - |
