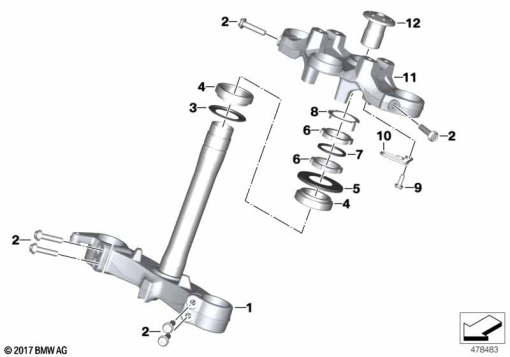

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 565 020 | LOWER FORK CROSS BRACE | - | |
31425A699F9 | LOWER FORK CROSS BRACEAlternative for position 1 | - | ||
| 2 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 3 | 31 42 8 548 984 | WASHER-GASKET | - | |
| 4 | 31 42 8 548 780 | BEARING | - | |
| 5 | 31 42 8 554 057 | WASHER-GASKET | - | |
| 6 | 31 42 8 549 401 | GROOVE NUT | - | |
| 7 | 31 42 8 548 983 | RUBBER WASHER | - | |
| 8 | 31 42 8 549 411 | SECURING PLATE | - | |
| 9 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 10 | 32 73 8 562 352 | GUIDE CLUTCH CABLE | - | |
| 11 | 31 42 9 445 230 | UPPER FORK CROSS BRACE | - | |
| 12 | 31 42 8 549 243 | SCREW - M28X1,5 | - |
