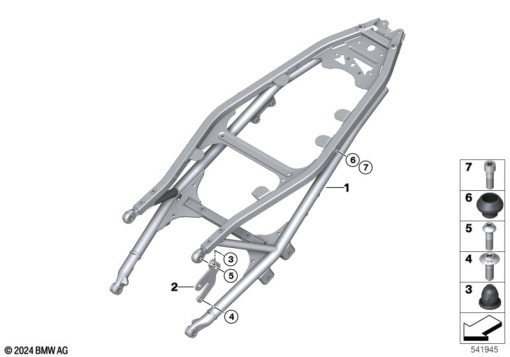

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 7 107 835 | REAR FRAME - LIGHTWHITE | - | |
46 51 7 107 834 | REAR FRAME - KTL BLACKAlternative for position 1 | - | ||
46515A76DF7 | REAR FRAME - RACINGREDAlternative for position 1 | - | ||
| 2 | 46 51 8 393 703 | HOLDER FOR SIDE COVER LEFT | - | |
46 51 8 393 704 | HOLDER FOR SIDE COVER RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 8 537 920 | SNAP-LOCK COUPLING - 7MM | - | |
| 4 | 46 63 8 568 780 | BODY SCREW WITHOUT SHOULDER - M5X16 MK | - | |
| 5 | 46 51 9 909 507 | FILLISTER-HEAD SCREW - M10X35 MK | - | |
| 6 | 71 60 7 704 405 | MUSHROOM BOLT | - | |
| 7 | 07 12 9 905 768 | ISA SCREW - M8X25-8.8-ZNNIV | - |
