F900GS 22 (K81) | Frame, Fairing, Cases

MUDGUARD

Diagram #46_2627 | 3 parts

100%

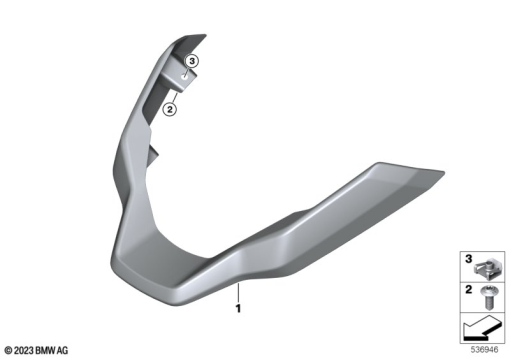

F900GS 22 (K81) MUDGUARD exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 61 1 702 980
FRONT WHEEL FENDER, UPPER1
2
46 63 8 568 781
BODY SCREW WITHOUT SHOULDER - M5X16-A2-701
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
