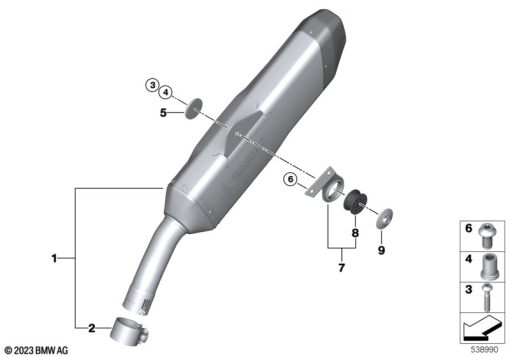

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 7 107 608 | REAR MUFFLER | - | |
| 2 | 18 51 8 553 721 | CLAMP - D=53MM | - | |
| 3 | 07 12 9 907 379 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNNIV | - | |
| 4 | 18 51 7 708 081 | SPACER SLEEVE | - | |
| 5 | 18 51 7 708 082 | FORMED DISC | - | |
| 6 | 07 12 9 907 384 | ISA SCREW - M8X16-8.8-ZNNIV | - | |
| 7 | 18 51 7 107 627 | RETAINING PLATE FOR REAR MUFFLER | - | |
| 8 | 18 51 7 728 002 | RUBBER INSULATION ELEMENT | - | |
| 9 | 77 11 8 548 077 | FORMED DISC - M8 | - |
