Parts List (8)

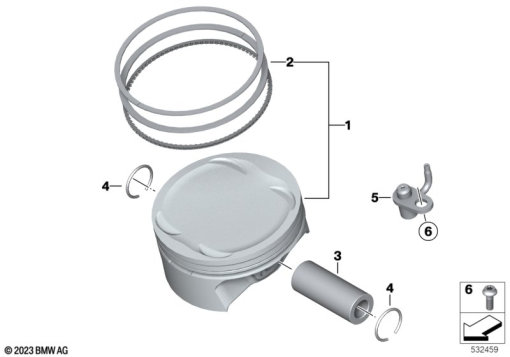

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 25 9 829 370 | PISTON | - | |
11255B40049 | PISTONAlternative for position 1 | - | ||
| 2 | 11 25 9 829 368 | SET: PISTON RINGS - D86 | - | |
11255B4F8D7 | SET: SET PISTON RINGSAlternative for position 2 | - | ||
| 3 | 11 25 8 555 206 | GUDGEON PIN - D19X11X48 | - | |
| 4 | 11 25 8 555 210 | LOCK RING - 19X1,5 | - | |
| 5 | 11 42 8 562 658 | OIL SPRAYING NOZZLE | - | |
| 6 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - |
