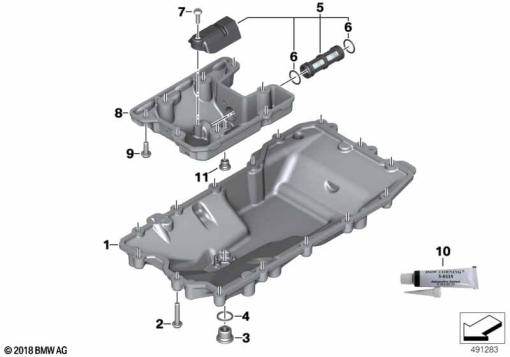

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 7 107 956 | OIL PAN | - | |
| 2 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 3 | 11 13 8 359 126 | OIL DRAIN PLUG - M16X1.5-AL | - | |
| 4 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 5 | 23 41 7 923 477 | SET: SET STRAINER OIL SUMP (from 09/20) | - | |
| 7 | 07 12 9 907 412 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNNIV | - | |
| 8 | 11 41 1 541 719 | OIL PAN DRY SUMP (from 09/20) | - | |
| 9 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 10 | 07 58 0 397 777 | SEALING COMPOUND DOW CORNING - 35ML | - | |
| 11 | 11 11 7 728 742 | SCREW PLUG - M10X1-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
