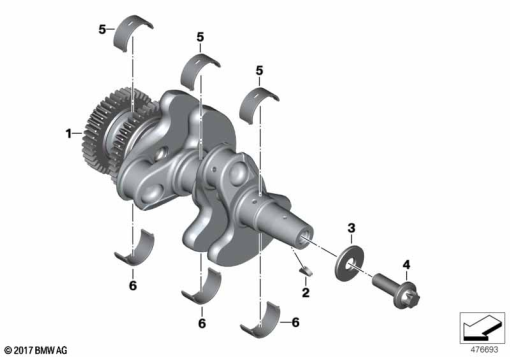

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 1 541 097 | CRANKSHAFT | 1 | |
| 2 | 07 11 9 951 480 | WOODRUFF KEY - 5X6.5 | 1 | |
| 3 | 11 21 8 566 060 | WASHER - 40X14X4 | 1 | |
| 4 | 11 21 8 566 065 | ASA-BOLT - M14X1,5X40-10.9 | 1 | |
| 5 | 11 21 8 563 906 | BEARING SHELL MAIN BEARING TOP YELLOW - D38X2 | 1 | |
| 5 | 11 21 8 563 907 | BEARING SHELL MAIN BEARING TOP GREEN - D38X2 | 1 | |
| 6 | 11 21 8 563 909 | BEARING SHELL MAIN BEARING BOTTOM YELLOW - D38X2 | 1 | |
| 6 | 11 21 8 563 910 | BEARING SHELL MAIN BEARING BOTTOM GREEN - D38X2 | 1 |
