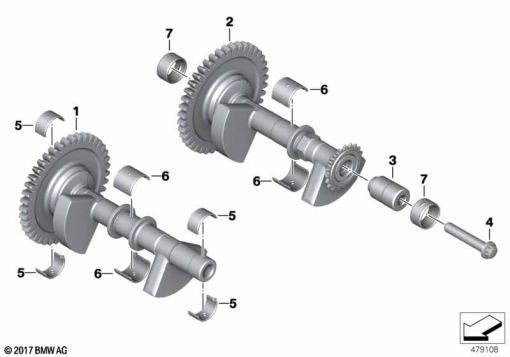

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 8 563 949 | COUNTERBALANCE SHAFT FRONT | - | |
| 2 | 11 27 8 563 953 | COUNTERBALANCE SHAFT REAR | - | |
| 3 | 11 27 8 563 958 | BEARING JOURNAL COUNTERBALANCE SHAFT | - | |
| 4 | 11 24 8 564 046 | CONNECTING ROD BOLT - M9X1 | - | |
| 5 | 11 27 8 563 960 | BEARING SHELL, RED - D=24 | - | |
11 27 8 563 961 | BEARING SHELL, BLUE - D=24Alternative for position 5 | - | ||
| 6 | 11 27 8 563 963 | BEARING SHELL, RED - D=24X20 | - | |
11 27 8 563 964 | BEARING SHELL, BLUE - D=24X20Alternative for position 6 | - | ||
| 7 | 11 27 8 568 728 | BEARING BUSH RED - D=24 | - | |
11 27 8 568 729 | BEARING BUSH VIOLET - D=24Alternative for position 7 | - | ||
11 27 8 568 730 | BEARING BUSH BLUE - D=24Alternative for position 7 | - |
