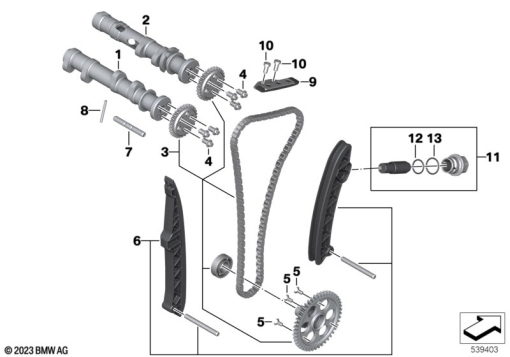

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 8 387 901 | INLET CAMSHAFT | - | |
| 2 | 11315B36C00 | CAMSHAFT EXHAUST | - | |
| 3 | 11 00 8 404 492 | SET: SET, TIMING CHAIN | - | |
| 4 | 11 31 7 727 500 | ASA-BOLT - M7X11.5-10.9 | - | |
| 5 | 64 22 6 916 475 | COUNTERSUNK HEAD SCREW - M5X12-ZNS3 | - | |
| 6 | 11 00 8 404 490 | SET: SET OF CHAIN GUIDE RAILS | - | |
| 7 | 11 32 7 713 818 | ROCKER ARM SHAFT | - | |
| 8 | 11 32 7 718 079 | NEEDLE ROLLER - 3,5X34,8 | - | |
| 9 | 11315A69F47 | SLIDE RAIL | - | |
| 10 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - | |
| 11 | 11 00 8 404 491 | SET: SET OF CHAIN TENSIONERS | - | |
| 12 | 07 11 9 906 605 | O-RING - 18X2 | - | |
| 13 | 11 31 7 705 460 | SET: O-RING SET | - |
