F900GS 22 (K81) | Electrical System

RETAINING CLIPS, LINE CLIPS

Diagram #61_6232 | 4 parts

100%

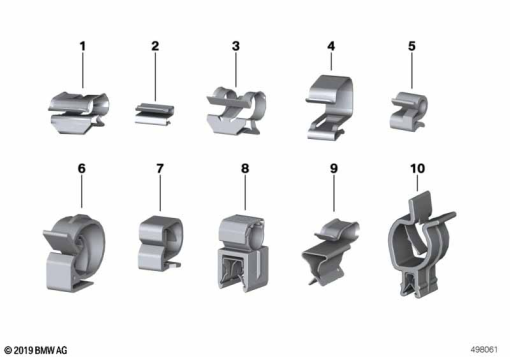

F900GS 22 (K81) RETAINING CLIPS, LINE CLIPS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 13 7 670 182
FIXING CLAMP1
2
61 31 2 306 377
FIXING CLAMP - A=2.0-2.5MM1
7
61 66 7 067 184
TUBING SUPPORT1
7
61 66 7 067 184
TUBING SUPPORT1
