Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83 30 0 413 580 | REPAIR PLUG, 8-POLE / 3-POLE - NO. 611651 | - | |
| 2 | 83 30 0 413 581 | REPAIR PLUG, 8-PIN - NO. 611652 | - | |
| 3 | 83 30 0 413 582 | REPAIR PLUG, 3-PIN - NO. 611653 | - | |
| 4 | 83 30 0 413 583 | REPAIR PLUG, 4-PIN - NO. 611654 | - | |
| 5 | 83 30 0 413 584 | REPAIR PLUG, 4-PIN - NO. 611655 | - | |
| 6 | 83 30 0 413 585 | REPAIR PLUG, 3-PIN - NO. 611656 | - | |
| 7 | 83 30 0 413 586 | REPAIR PLUG, 3-PIN - NO. 611657 | - | |
| 8 | 83 30 0 444 440 | REPAIR PLUG, 2-PIN - NO. 610622 | - | |
| 9 | 83 30 2 152 864 | REPAIR PLUG - NO. 610623 | - | |
| 11 | 83 30 2 358 382 | REPAIR PLUG, 3-PIN | - |

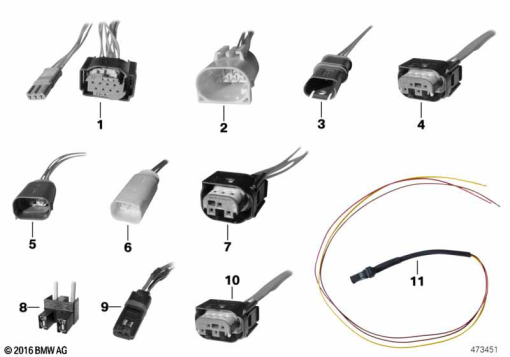

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
