F900GS 22 (K81) | Cooling

COOLANT RADIATOR MOUNTING HARDWARE

Diagram #17_1241 | 11 parts

100%

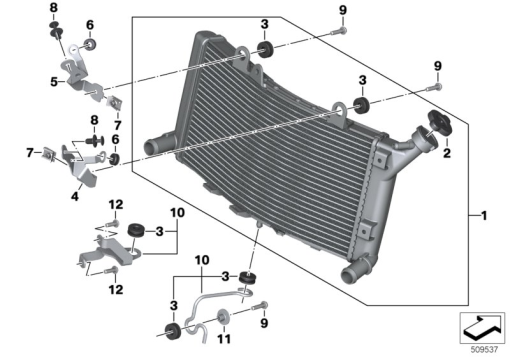

F900GS 22 (K81) COOLANT RADIATOR MOUNTING HARDWARE exploded view parts diagram

Parts List (11)

#Part NumberDescriptionQty
1
17 11 7 105 921
RADIATOR-
2
17 11 7 914 009
COVER LID - 1.5BAR-
3
46 63 1 451 277
RUBBER GROMMET (from 09/20)-
4
17 11 7 923 849
HOLDER FOR RADIATOR TOP RIGHT-
5
17 11 7 923 848
HOLDER FOR RADIATOR TOP LEFT-
6
46 63 8 521 158
RUBBER GROMMET-
7
07 14 7 286 036
C-CLIP NUT, SELF-LOCKING - M6-ZNS3-
8
51 47 1 911 992
EXPANDING RIVET - D = 8MM-
9
07 12 9 907 401
ISA SCREW - M6X25-8.8-ZNNIV (from 09/20)-
10
17 11 7 924 052
LOWER COOLER BRACKET (from 09/20)-
12
07 12 9 907 403
FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV (from 09/20)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
