F900GS 22 (K81) | Accessories

RETROFIT, PASSENGER FOOT PEG

Diagram #77_1667 | 5 parts

100%

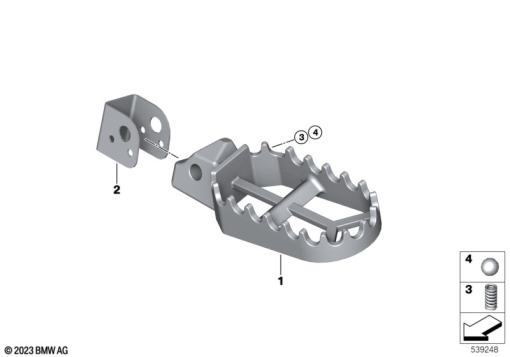

F900GS 22 (K81) RETROFIT, PASSENGER FOOT PEG exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
77255A63C97
FOOTREST FOR PASSENGER LEFT1
1
77255A63C98
FOOTREST FOR PASSENGER RIGHT1
2
46715A75BA9
DETENT PLATE1
3
46 71 8 392 689
COMPRESSION SPRING1
4
07 11 9 905 155
BALL - 6,35MM1
