F900GS 22 (K81) | Accessories

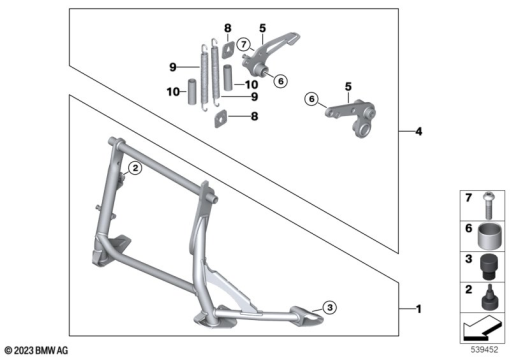

RETROFIT, CENTER STAND
Diagram #77_1690 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 7 106 079 | CENTER STAND | 1 | |
| 2 | 46 52 2 332 218 | BUMP STOP - H=10 | 1 | |
| 3 | 31 42 8 537 724 | STOP BUFFER - 7,5X12 | 1 | |
| 4 | 77 25 1 540 027 | SET: SET OF MOUNTING PARTS, TILTING STAND | 1 | |
| 5 | 46 52 1 599 188 | SUPPORTING PLATE RIGHT | 1 | |
| 5 | 46 52 8 358 253 | SUPPORTING PLATE LEFT | 1 | |
| 6 | 35 21 7 721 100 | BUSHING | 1 | |
| 7 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 8 | 46 52 8 526 528 | PERFORATED PLATE | 1 | |
| 9 | 46 52 7 699 005 | TENSION SPRING - D=15 | 1 | |
| 10 | 46 53 7 715 106 | RUBBER GROMMET | 1 |
