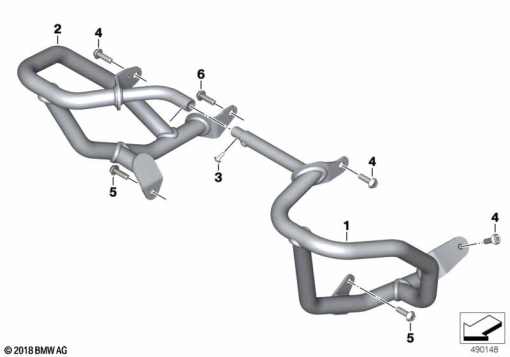

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77145A5A555 | ENGINE PROTECTION BAR BLACK LEFT (from 09/23) | 1 | |
| 1 | 11 78 9 457 295 | HOLDER (from 09/23) | 1 | |
| 1 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK (from 09/23) | 1 | |
| 1 | 77 41 7 921 897 | LEFT ENGINE PROTECTION BAR (from 09/23) | 1 | |
| 1 | 11 78 9 457 295 | HOLDER (from 09/23) | 1 | |
| 1 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK (from 09/23) | 1 | |
| 2 | 77 41 7 921 898 | RIGHT ENGINE PROTECTION BAR (from 09/23) | 1 | |
| 2 | 77145A5A556 | ENGINE PROTECTION BAR BLACK RIGHT (from 09/23) | 1 | |
| 1 | 11 78 9 457 295 | HOLDER (from 09/23) | 1 | |
| 1 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK (from 09/23) | 1 | |
| 3 | 46 61 7 713 314 | FILLISTER HEAD SCREW - M5X14-A2-80-MK | 1 | |
| 4 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | 1 | |
| 5 | 07 12 9 908 416 | FILLISTER-HEAD SCREW - M8X35-8.8-MK | 1 | |
| 6 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | 1 |
