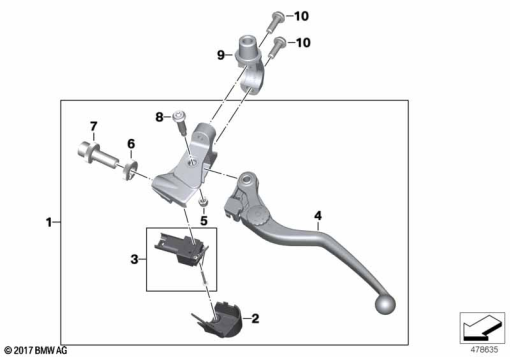

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 9 457 890 | CLUTCH CONTROL ASSEMBLY | - | |
| 2 | 32 72 7 107 629 | COVER | - | |
| 3 | 32 72 8 389 068 | SET: SET OF DUAL MICROSWITCHES | - | |
| 4 | 32 72 8 389 435 | SET: CLUTCH LEVER | - | |
| 5 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 6 | 32 72 8 565 092 | COUNTER NUT | - | |
| 7 | 32 72 8 565 091 | ADJUSTING SCREW | - | |
| 8 | 32 72 8 389 274 | FIT BOLT | - | |
| 9 | 32 72 8 565 049 | CLAMP WITH MIRROR MOUNT (to 12/18) | - | |
32 72 9 457 893 | CLAMP WITH MIRROR MOUNTAlternative for position 9 | - | ||
32 72 9 457 894 | CLAMP WITH MIRROR MOUNTAlternative for position 9 | - | ||
| 10 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - |
