F850GS ADV 17 (K82) | Pedals

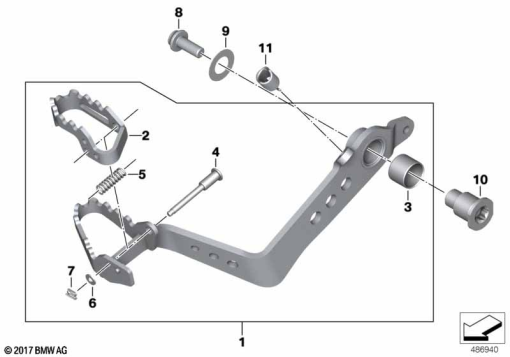

FOOTBRAKE LEVER, ADJUSTABLE
Diagram #35_0594 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 8 569 755 | FOOTBRAKE LEVER, ADJUSTABLE | 1 | |
| 2 | 35 21 8 550 066 | TOE PEDAL FOR BRAKE, ADJUSTABLE | 1 | |
| 3 | 35 21 7 721 100 | BUSHING | 1 | |
| 4 | 35 21 8 523 356 | PIN - L=48.5MM | 1 | |
| 5 | 35 21 7 690 250 | SPRING | 1 | |
| 6 | 07 11 9 904 924 | WASHER - 9X4,3X0,8-A2 | 1 | |
| 7 | 07 11 9 905 447 | SPLIT PIN - 1,6X16 | 1 | |
| 8 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 9 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | 1 | |
| 10 | 23 41 8 533 708 | COLLAR BUSH | 1 | |
| 11 | 34 21 7 711 413 | SPRING | 1 |
