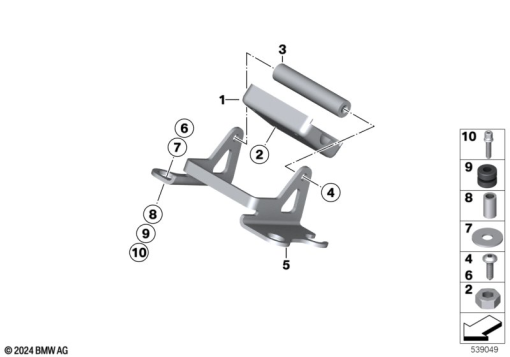

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65 90 8 525 238 | CLAMPING | - | |
| 2 | 07 11 9 922 854 | HEX NUT - M4-A2-70 | - | |
| 3 | 65 90 8 559 633 | AXLE | - | |
| 4 | 46 62 7 692 608 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M5X20 | - | |
| 5 | 65 90 8 358 286 | NAVIGATOR HOLDER | - | |
| 6 | 46 62 7 692 608 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M5X20 | - | |
| 7 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 8 | 77 52 8 534 033 | SPACER BUSH | - | |
| 9 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - | |
| 10 | 32 71 8 396 665 | SCREW - M8X35 | - |
