F850GS ADV 17 (K82) | Lighting

LED TURN SIGNALS, REAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #63_2718 | 3 parts

100%

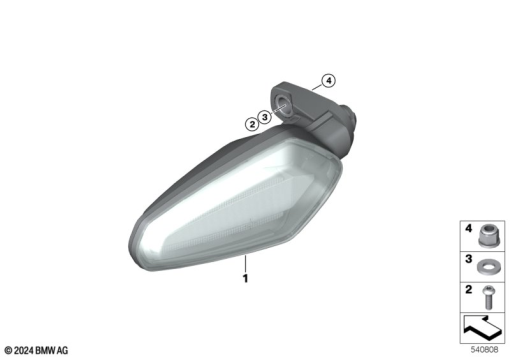

F850GS ADV 17 (K82) LED TURN SIGNALS, REAR exploded view parts diagram

Parts List (3)

#	Part Number	Description	Qty
1	63 23 8 557 203	LED TURN INDICATOR - SAE (from 09/20)	-
2	07 12 9 907 402	FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV	-
4	07 12 9 905 542	HEX NUT WITH PLATE - AM6-8-ZNNIV SI	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
