F850GS ADV 17 (K82) | Lighting

LED TAILLIGHT

Diagram #63_1756 | 4 parts

100%

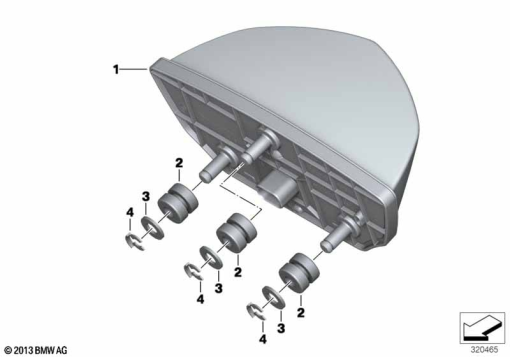

F850GS ADV 17 (K82) LED TAILLIGHT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
63 21 8 525 603
LED TAILLIGHT1
2
62 21 7 670 749
RUBBER GROMMET - 8X18X12MM1
3
07 11 9 907 030
WASHER - 8,4X16X1,6-ZNNV1
4
07 12 9 909 733
SECURING CLIP - ZNNIV SW1
