F850GS ADV 17 (K82) | Handlebar & Luggage Kits
LUGGAGE SYSTEM ALUMINUM

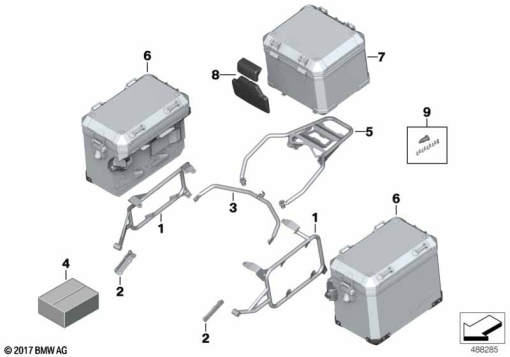

Diagram #03_4611 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 569 709 | LEFT CASE HOLDER | - | |
46 63 8 569 710 | CASE HOLDER RIGHTAlternative for position 1 | - | ||
| 2 | 46 54 8 382 537 | BRACKET | - | |
| 3 | 46 63 8 569 708 | CROSSOVER | - | |
| 4 | 77 42 8 405 472 | SET: ATTACHMENT SET CASE CARRIER | - | |
| 5 | 46 63 8 569 707 | LUGGAGE RACK TOPCASE ALUMINUM | - | |
| - | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| - | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| 6 | 77 41 1 539 693 | ALUMINUM CASE, LEFT | - | |
77 41 1 539 694 | ALUMINUM CASE, RIGHTAlternative for position 6 | - | ||
77 41 2 472 174 | ALUMINUM CASE BLACK RIGHTAlternative for position 6 | - | ||
77 41 2 472 175 | ALUMINUM CASE BLACK LEFT - US / CAAlternative for position 6 | - | ||
77 41 2 472 176 | ALUMINUM CASE BLACK RIGHT - US / CAAlternative for position 6 | - | ||
| 7 | 77 43 1 539 595 | ALUMINUM TOPCASE | - | |
77 43 2 472 170 | ALUMINUM TOPCASE BLACKAlternative for position 7 | - | ||
| 8 | 77 44 8 546 808 | SET: SET BACKREST CUSHION TOP CASE | - | |
| 9 | 77 49 8 544 517 | SET: REP.KIT F LOCK CYLINDER | - | |
77 49 8 393 960 | SET: REP.KIT F LOCK CYLINDERAlternative for position 9 | - |
