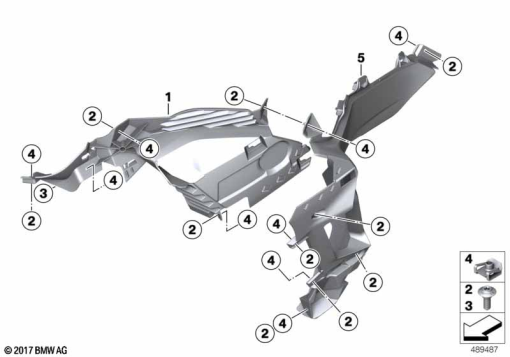

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 569 691 | TANK COVER, FRONT LEFT | - | |
46 63 8 569 692 | TANK COVER, FRONT RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 3 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 46 63 8 569 705 | TANK COVER, LOWER SECTION, LEFT | - | |
46 63 8 569 706 | TANK COVER, LOWER SECTION, RIGHTAlternative for position 5 | - |
