F850GS ADV 17 (K82) | Frame, Fairing, Cases

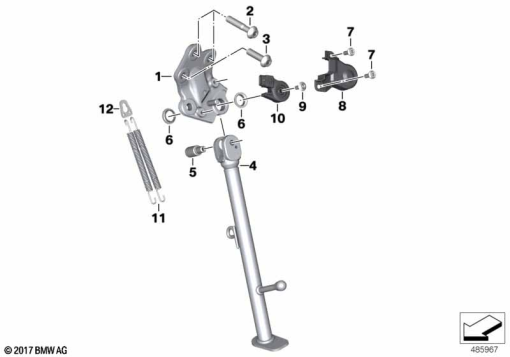

SIDE STAND
Diagram #46_2038 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 8 357 957 | SUPPORTING BRACKET F SIDE STAND | 1 | |
| 2 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | 1 | |
| 3 | 07 12 9 907 428 | FILLISTER-HEAD SCREW - M10X35-8.8 | 1 | |
| 4 | 46 53 9 480 225 | SIDE STAND | 1 | |
| 4 | 46 53 9 480 227 | SIDE BRACE, SHORT | 1 | |
| 5 | 46 53 8 356 967 | SIDE-SUPPORT SCREW - M10X1-ZNNIV-MK | 1 | |
| 6 | 46 53 7 679 105 | COLLAR BUSH | 1 | |
| 7 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 | |
| 8 | 61 31 8 394 519 | COVER FOR SIDE-STAND SWITCH | 1 | |
| 9 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | 1 | |
| 10 | 61 31 8 388 642 | SWITCH, KICKSTAND | 1 | |
| 11 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 12 | 46 53 7 653 538 | METAL BRACKET | 1 |
