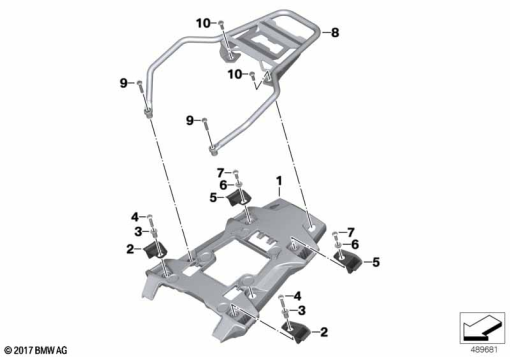

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 564 641 | REAR CARRIER PART | - | |
| 2 | 46 54 8 566 331 | BUFFER, FRONT LEFT | - | |
46 54 8 566 332 | BUFFER, FRONT RIGHTAlternative for position 2 | - | ||
| 3 | 46 62 8 543 435 | BUSHING, FRONT | - | |
| 4 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| 5 | 46 54 8 566 343 | BUFFER, REAR LEFT | - | |
46 54 8 566 344 | BUFFER, REAR RIGHTAlternative for position 5 | - | ||
| 6 | 46 62 8 543 436 | BUSHING, REAR | - | |
| 7 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | - | |
| 8 | 46 63 8 569 707 | LUGGAGE RACK TOPCASE ALUMINUM | - | |
| 9 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | - | |
| 10 | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - |
