Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 8 564 642 | LICENSE PLATE HOLDER | - | |
| 2 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 4 | 51 18 1 852 299 | PLUG-IN NUT | - | |
| 5 | 63 14 7 671 349 | REAR REFLECTOR RED | - | |
| 6 | 63 14 8 564 665 | LICENCE PLATE ADAPTOR | - | |
| 7 | 63 14 8 546 605 | MOUNTING FOR REAR REFLECTOR | - | |
| 9 | 07 14 7 137 416 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X16 | - |

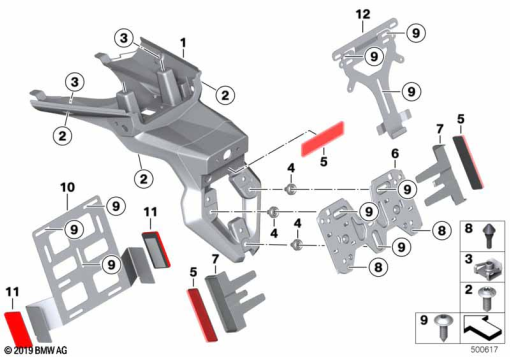

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
