F850GS ADV 17 (K82) | Frame, Fairing, Cases

AIR DUCTING, RADIATOR

Diagram #46_2105 | 4 parts

100%

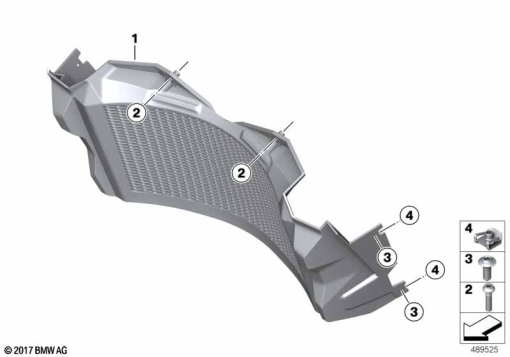

F850GS ADV 17 (K82) AIR DUCTING, RADIATOR exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 1 599 150
AIR DUCT, RADIATOR1
2
07 12 9 907 401
ISA SCREW - M6X25-8.8-ZNNIV1
3
46 63 8 568 781
BODY SCREW WITHOUT SHOULDER - M5X16-A2-701
4
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
