F850GS ADV 17 (K82) | Engine

INTAKE MANIFOLD

Diagram #11_6779 | 3 parts

100%

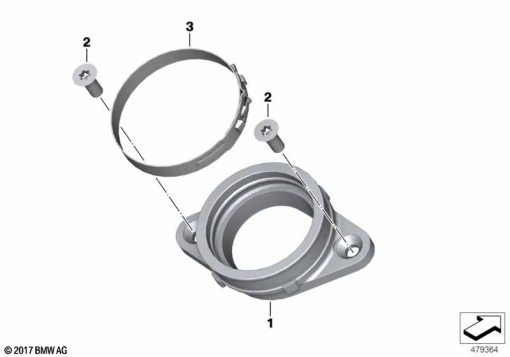

F850GS ADV 17 (K82) INTAKE MANIFOLD exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
11 00 8 569 335
INTAKE MANIFOLD1
2
23 41 7 707 831
FILLISTER HEAD SCREW - M6X16-A2-70-MK1
3
11 61 7 680 689
MUFFLER CLAMP - D=61MM, B=9MM1
