F850GS ADV 17 (K82) | Engine Electrics

CAMSHAFT POSITION SENSOR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #12_2368 | 5 parts

100%

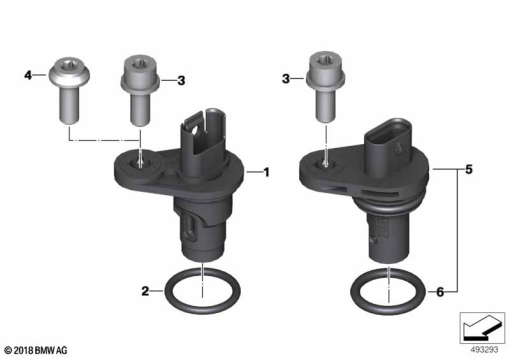

F850GS ADV 17 (K82) CAMSHAFT POSITION SENSOR exploded view parts diagram

Parts List (5)

#	Part Number	Description	Qty
1	12 72 8 523 317	CAMSHAFT POSITION SENSOR	-
2	12 14 1 748 398	O-RING - 17X3	-
4	07 12 9 907 403	FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV	-
5	13 62 7 633 958	CAMSHAFT POSITION SENSOR (from 09/20)	-
6	13 62 8 658 854	O-RING - 18,2X2,5 (from 09/20)	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
