F850GS ADV 17 (K82) | Electrical System

FUSES

Diagram #61_5768 | 4 parts

100%

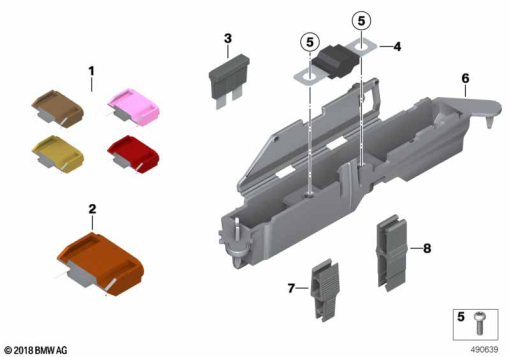

F850GS ADV 17 (K82) FUSES exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 13 6 917 402
FUSE MINI, BROWN - 7,5A1
1
61 13 6 917 403
FUSE MINI, RED - 10A1
1
61 13 6 917 404
FUSE MINI, BLUE - 15A1
8
61 13 7 668 722
GRIPPER CLIP FOR MINIATURE FUSES1
