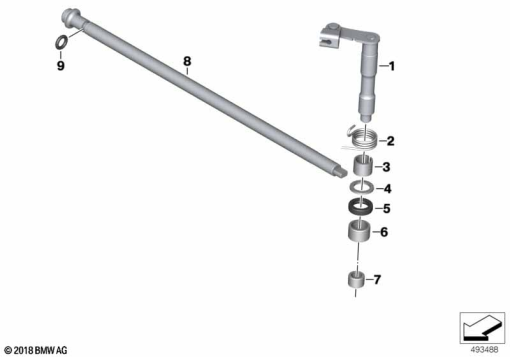

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 52 8 565 063 | CLUTCH REL.FORK LEVER | - | |
| 2 | 21 52 8 565 066 | SPRING | - | |
| 3 | 21 52 8 565 067 | PLASTIC BUSH | - | |
| 4 | 21 52 8 565 065 | WASHER | - | |
| 5 | 21 21 7 700 173 | SHAFT SEAL - 12X18X4,5 | - | |
| 6 | 11 14 2 343 037 | NEEDLE SLEEVE - 12X16X10 | - | |
21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10Alternative for position 6 | - | ||
| 7 | 11 14 2 343 036 | NEEDLE SLEEVE - 8X12X8 | - | |
| 8 | 21 52 8 565 064 | PUSHROD CLUTCH | - | |
| 9 | 07 14 7 007 916 | O-RING | - |
