F850GS ADV 17 (K82) | Brakes

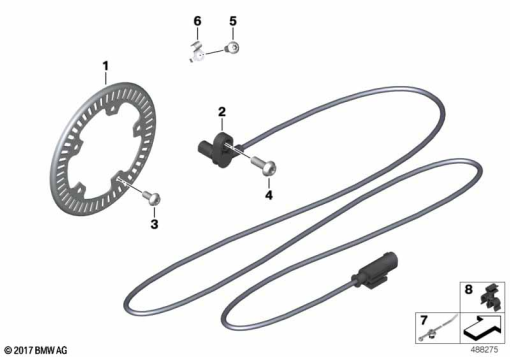

ROTATIONAL-SPEED SENSOR, REAR
Diagram #34_2531 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 9 480 186 | SENSOR RING - Z=48 | 1 | |
| 2 | 34 52 7 715 117 | WHEELSPEED SENSOR | 1 | |
| 3 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | 1 | |
| 4 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 | |
| 5 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | 1 | |
| 6 | 34 51 7 695 906 | CABLE HOLDER | 1 | |
| 7 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | 1 | |
| 8 | 33 53 8 532 372 | WIRE HOLDER, TWO-PLACE (to 08/20) | 1 | |
| 8 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM (from 08/20) | 1 |
