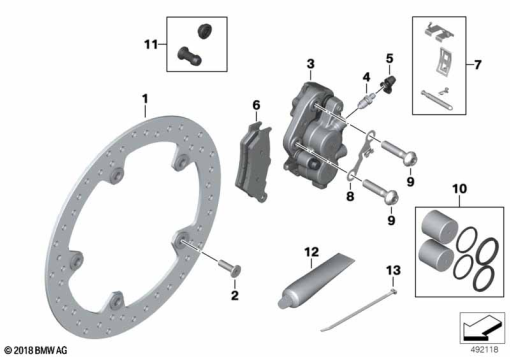

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 8 526 566 | BRAKE ROTOR WITH RIVET - D=305-4,5MM | 1 | |
| 10 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | 1 | |
| 2 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | 1 | |
| 3 | 34 11 8 382 761 | BRAKE CALIPER WITHOUT PADS, LEFT | 1 | |
| 3 | 34 11 8 382 762 | BRAKE CALIPER WITHOUT PADS, RIGHT | 1 | |
| 4 | 34 21 2 335 975 | VENT SCREW | 1 | |
| 5 | 34 21 1 236 794 | DUST CAP | 1 | |
| 6 | 34 21 8 569 412 | SET: SET OF BRAKE PADS FRONT | 1 | |
| 6 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 7 | 34 11 8 382 714 | SET: SET OF MOUNTING PARTS, LEFT | 1 | |
| 7 | 34 11 8 382 868 | SET: SET OF MOUNTING PARTS, RIGHT | 1 | |
| 8 | 34 52 8 404 579 | BRACKET | 1 | |
| 9 | 07 12 9 907 937 | FILLISTER-HEAD SCREW - M10X45-U0-8.8 | 1 | |
| 10 | 34 11 8 382 869 | SET: SET PISTONS WITH GASKET | 1 | |
| 11 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | 1 | |
| 12 | 83 19 2 158 852 | BRAKE PAD PASTE - 100G | 1 | |
| 13 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
