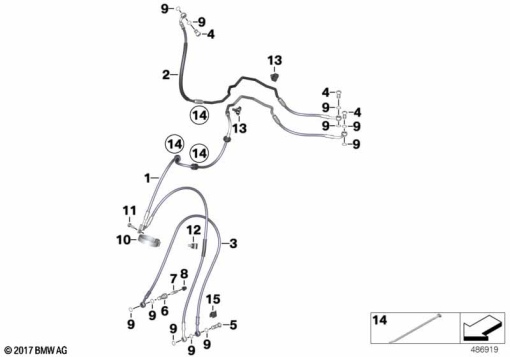

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 564 348 | BRAKE LINE, FRONT BRAKE CIRCUIT | - | |
| 2 | 34 32 8 564 347 | BRAKE LINE FOR FRONT BRAKE CIRCUIT | - | |
| 3 | 34 32 8 564 958 | BRAKE HOSE, FRONT | - | |
| 4 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 5 | 34 32 9 445 088 | DOUBLE BANJO BOLT - M10X1 | - | |
| 6 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 7 | 34 11 8 520 872 | VENT SCREW | - | |
| 8 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 9 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 10 | 34 32 8 356 973 | MOUNTING CLAMP FOR BRAKE HOSE | - | |
| 11 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 12 | 46 71 7 685 598 | TUBING SUPPORT - D10 | - | |
| 13 | 34 32 7 727 425 | BRACKET, BRAKE PIPE, DOUBLE | - | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 15 | 34 32 7 706 009 | SPACER HOLDER | - |
