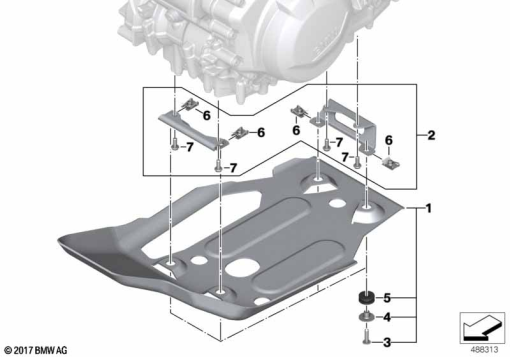

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 14 8 404 511 | SET: ENGINE GUARD ENDURO ALUMINUM (to 01/20) | - | |
11 84 8 544 599 | SET: MOUNTING KIT ENGINE GUARD (to 01/20)Alternative for position 1 | - | ||
77 14 9 443 941 | SET: ENGINE GUARD SET ALUMINUM (to 02/24)Alternative for position 1 | - | ||
11 84 8 544 599 | SET: MOUNTING KIT ENGINE GUARD (to 02/24)Alternative for position 1 | - | ||
11845B4C017 | SET: ENGINE GUARD SET ALUMINUMAlternative for position 1 | - | ||
11 84 8 544 599 | SET: MOUNTING KIT ENGINE GUARDAlternative for position 1 | - | ||
| 2 | 11 84 8 544 599 | SET: MOUNTING KIT ENGINE GUARD | - | |
| 3 | 46 62 7 652 556 | FILLISTER HEAD SCREW - M6X25-A2-80 | - | |
| 4 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 5 | 17 11 7 722 131 | GROMMET | - | |
| 6 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 7 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - |
