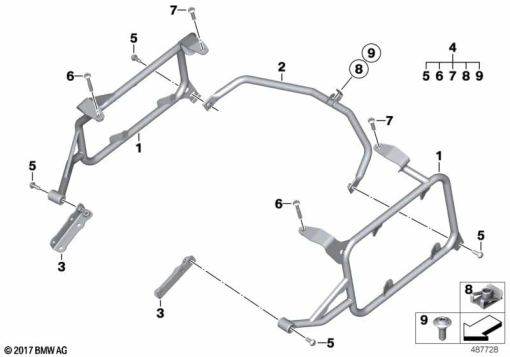

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 569 709 | LEFT CASE HOLDER | - | |
46 63 8 569 710 | CASE HOLDER RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 8 569 708 | CROSSOVER | - | |
| 3 | 46 54 8 382 537 | BRACKET | - | |
| 4 | 77 42 8 405 472 | SET: ATTACHMENT SET CASE CARRIER | - | |
| 5 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| 6 | 07 12 9 909 264 | FILLISTER-HEAD SCREW - M8X50 MK | - | |
| 7 | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - | |
| 8 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 9 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | - |
