F850GS ADV 17 (K82) | Accessories

ALUMINUM CASE VOLUME EXPANSION

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #77_1540 | 4 parts

100%

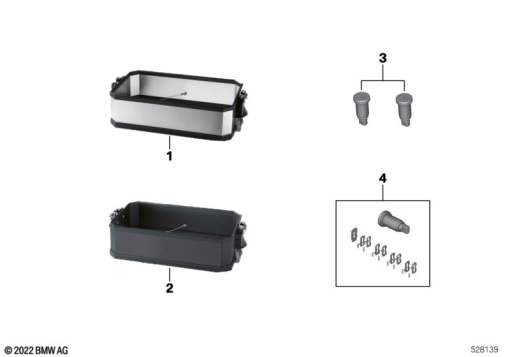

F850GS ADV 17 (K82) ALUMINUM CASE VOLUME EXPANSION exploded view parts diagram

Parts List (4)

#	Part Number	Description	Qty
1	77415A14867	ALUMINUM CASE VOLUME EXPANSION - SILVER 13,5L	-
2	77415A14873	ALUMINUM CASE VOLUME EXPANSION - BLACK 13,5L	-
4	77 49 8 544 517	SET: REP.KIT F LOCK CYLINDER	-
	77 49 8 393 960	SET: REP.KIT F LOCK CYLINDERAlternative for position 4	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
