F850GS ADV 17 (K82) | Accessories

ALUMINUM CASE VOLUME EXPANSION

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #77_1316 | 4 parts

100%

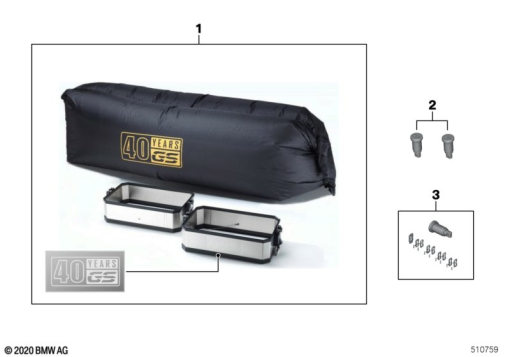

F850GS ADV 17 (K82) ALUMINUM CASE VOLUME EXPANSION exploded view parts diagram

Parts List (4)

#	Part Number	Description	Qty
1	77415A14874	SET: SET, ALUMINUM CASE VOLUME EXPANSION - SILVER 27L	-
	77415A14875	SET: SET, ALUMINUM CASE VOLUME EXPANSION - BLACK 27LAlternative for position 1	-
3	77 49 8 544 517	SET: REP.KIT F LOCK CYLINDER	-
	77 49 8 393 960	SET: REP.KIT F LOCK CYLINDERAlternative for position 3	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
