F800GS 08 (K72) | Vehicle Trim

REP.KIT F LOCK CYLINDER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #51_3316 | 5 parts

100%

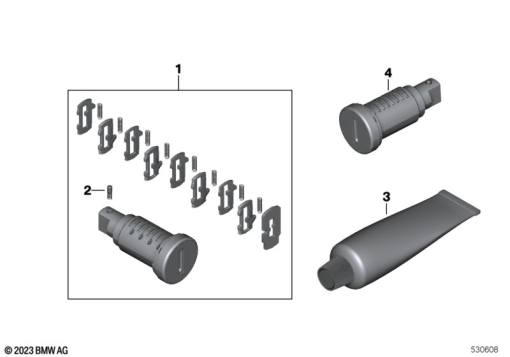

F800GS 08 (K72) REP.KIT F LOCK CYLINDER exploded view parts diagram

Parts List (5)

#	Part Number	Description	Qty
1	51 25 7 698 201	SET: REP.KIT F LOCK CYLINDER STEERING LOCK	-
	51 25 7 698 203	SET: REP.KIT F LOCK CYLINDERAlternative for position 1	-
-	16 11 7 691 502	TANK LID	-
1	51 25 7 698 204	SET: REP.KIT F LOCK CYLINDER	-
3	83 23 2 152 082	GREASE MI-SETRAL-43 N - 50G	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
