Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 7 700 072 | STEERING LOCK HOUSING | - | |
| 2 | 61 31 8 543 110 | IGNITION SWITCH | - | |
| 3 | 51 25 8 558 127 | SECURING BOLT - M8X40 | - | |
| 4 | 07 11 9 904 919 | WASHER - 8-200-ZNFE SW | - | |
| 5 | 51 25 2 313 185 | O-RING | - | |
| 6 | 61 35 7 705 247 | RING ANTENNA | - | |
| 7 | 51 25 7 677 808 | COVERING CAP | - | |
| 9 | 07 14 7 311 315 | FILLISTER HEAD SCREW - M3X8 | - |

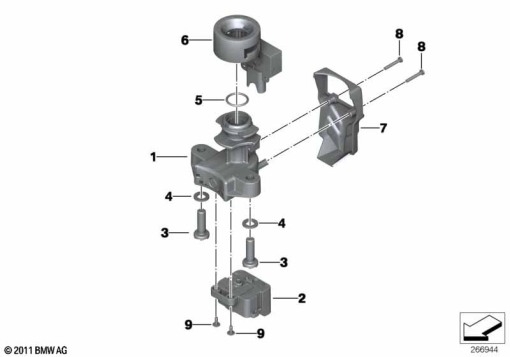

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
