F800GS 08 (K72) | Transmission

6-SPEED TRANSMISSION SHIFT COMPONENTS

Diagram #23_1043 | 37 parts | 1 available in shop

100%

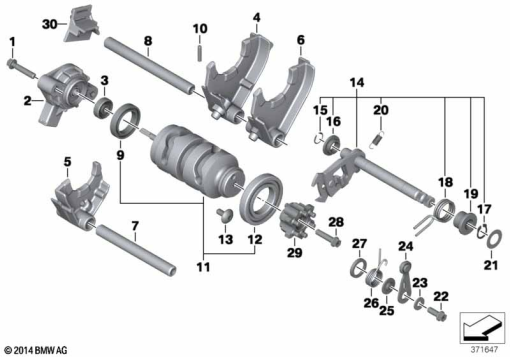

F800GS 08 (K72) 6-SPEED TRANSMISSION SHIFT COMPONENTS exploded view parts diagram

Parts List (37)

#Part NumberDescriptionQty
1
11 11 8 524 609
HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8-MK1
2
23 00 8 358 250
POTENTIOMETER GEAR INDICATOR (to 03/08)1
2
23 00 7 711 960
POTENTIOMETER WITH WIRE - L=300MM (from 03/08)1
–
23 00 7 711 037
SHIFTING ROLL (from 03/08)1
3
11 11 7 689 534
SHAFT SEAL - 6X22X71
4
23 00 7 704 815
SHIFTING FORK 2ND AND 4TH GEAR1
5
23 00 7 690 381
SHIFTING FORK 5ND AND 6TH GEAR1
6
23 00 7 704 813
SHIFTING FORK 1ST AND 3RD GEAR1
7
23 00 7 693 543
SELECTOR ROD1
8
23 00 7 690 383
SELECTOR ROD1
9
23 00 7 690 505
GROOVED BALL BEARING1
10
23 00 7 699 058
ROLL PIN - B4X34,81
11
23 00 7 711 037
SHIFTING ROLL1
–
23 00 7 711 960
POTENTIOMETER WITH WIRE - L=300MM1
12
23 00 7 690 504
GROOVED BALL BEARING - 30X55X91
13
11 11 7 715 120
TORX SCREW, MICRO-ENCAPSULATED - M6X13-8.8-MK1
14
23 00 8 537 700
SELECTOR SHAFT CPL.1
15
23 00 7 690 394
SNAP RING1
16
23 00 7 690 391
SPACER RING1
17
23 00 7 690 396
LOCK RING - 12X11
18
23 00 7 712 976
SPRING1
19
23 00 7 714 244
SPACER SLEEVE1
20
23 00 7 690 393
TENSION SPRING1
21
11 11 7 699 218
STOP DISK - 12,5X21,5X0,51
22
23 00 7 690 404
HEXAGON BOLT WITH INSIDE TORX - M6X16-8.81
–
23 00 7 690 399
WASHER - 6,41
22
11 11 7 715 120
TORX SCREW, MICRO-ENCAPSULATED - M6X13-8.8-MK1
–
23 00 7 690 399
WASHER - 6,41
22
11 11 7 715 120
TORX SCREW, MICRO-ENCAPSULATED - M6X13-8.8-MK1
–
23 00 7 690 399
WASHER - 6,41
23
23 00 7 690 399
WASHER - 6,41
24
23 00 7 690 400
LOCKING LEVER1
25
23 00 7 690 397
SUPPORT - 18X3,8X61
26
23 00 7 712 975
SPRING1
28
21 21 7 706 614
TORX BOLT - M6X25-8.81
29
23 00 7 712 973
SHIFT GEAR1
30
61 13 7 712 196
PLUG-IN CONNECTION BRACKET (from 03/08)1
