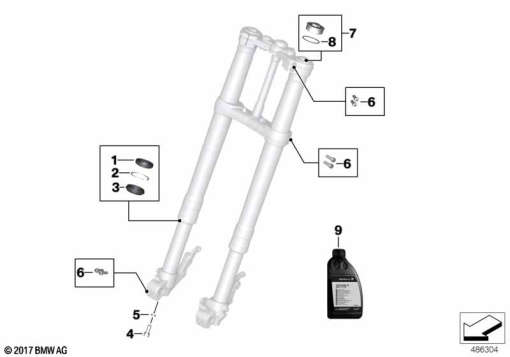

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 692 147 | GASKET RING - D=45MM | - | |
| 2 | 31 42 7 692 146 | LOCK RING | - | |
| 3 | 31 42 7 692 145 | 0.04 | - | |
| 4 | 07 11 9 919 994 | FILLISTER-HEAD SCREW - M10X25-10.9 PHR | - | |
| 5 | 31 42 7 666 239 | GASKET RING | - | |
| 6 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 7 | 31 42 7 705 889 | COVER | - | |
| 8 | 31 42 7 696 450 | O-RING | - | |
| 9 | 83 19 2 408 581 | TELESCOPIC FORKS OIL TYPE 2 - 1000ML (to 03/16) | - | |
83 19 2 460 735 | TELESCOPIC FORKS OIL TYPE 2 - 1000MLAlternative for position 9 | - |
