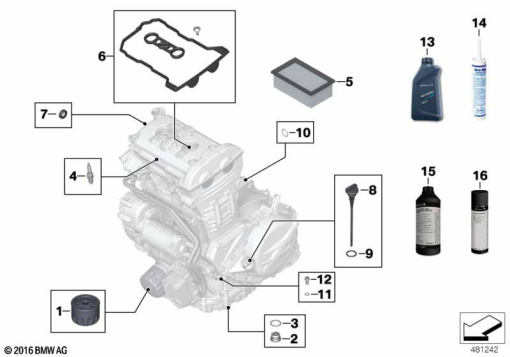

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11425B70298 | New Filter number | - | |
11 42 8 409 567 | OIL FILTER, BLACKAlternative for position 1 | - | ||
| 2 | 11 13 7 708 604 | SCREW PLUG, MAGNETIC - M24X2 | - | |
| 3 | 11 41 7 652 949 | GASKET RING - 24X30X1,5 | - | |
| 4 | 12 12 7 690 603 | SPARK PLUG - DCPR8E | - | |
| 5 | 13 71 8 529 998 | AIR FILTER ELEMENT | - | |
| 6 | 11 12 8 520 621 | SET: GASKET SET, CYLINDER HEAD COVER | - | |
| 7 | 11 51 7 690 488 | GASKET | - | |
| 8 | 11 43 7 708 131 | DIPSTICK | - | |
| - | 11 43 7 689 572 | O-RING - 21,82X3,53 | - | |
| 9 | 11 43 7 689 572 | O-RING - 21,82X3,53 | - | |
| 10 | 11 31 2 343 091 | GASKET RING - 18,2X24X1 | - | |
| 11 | 11 11 2 343 010 | GASKET RING - A8X13 | - | |
| 12 | 11 11 7 699 121 | TORX SCREW WITH COLLAR - M8X16 | - | |
| 13 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | - | |
| 14 | 83 19 0 404 517 | LOCTITE 5970 LIQUID SEALANT - 50ML | - | |
| 15 | 83 51 2 445 463 | RADIATOR/ANTIFREEZE/ANTI-CORROSION AGENT - 1,5L (to 09/13) | - | |
83515A87B45 | RADIATOR ANTIFREEZE - 1,5L (to 09/13)Alternative for position 15 | - | ||
83 51 2 355 290 | ANTI-FREEZE - 1,5L (to 10/19)Alternative for position 15 | - | ||
83515A6CDD7 | RADIATOR ANTIFREEZE - 1,5 LITERAlternative for position 15 | - | ||
83515A6CDD8 | RADIATOR ANTIFREEZE - 60 LITERAlternative for position 15 | - | ||
| 16 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | - | |
83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 16 | - |
