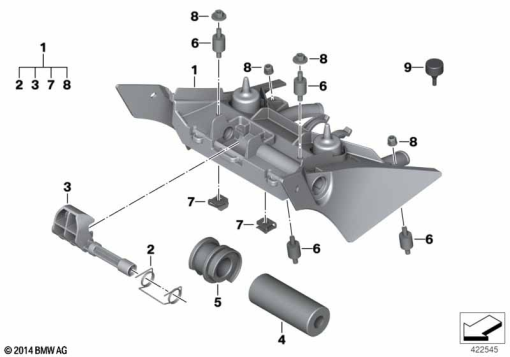

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 7 705 678 | SEAT BENCH LOCKING SYSTEM | 1 | |
| – | 51 25 7 681 200 | LOCK CYLINDER WITH VIN CODE | 1 | |
| – | 51 25 7 698 204 | SET: REP.KIT F LOCK CYLINDER | 1 | |
| 2 | 46 62 7 675 422 | RETURN SPRING | 1 | |
| 3 | 52 53 7 687 665 | LOCKING BRACKET | 1 | |
| 4 | 52 53 7 700 032 | RUBBER MOUNTING LEFT | 1 | |
| 5 | 52 53 7 701 034 | RUBBER MOUNTING RIGHT | 1 | |
| 6 | 52 53 7 696 126 | RUBBER MOUNTING | 1 | |
| 7 | 46 63 7 658 638 | FLAT NUT - M5 | 1 | |
| 8 | 07 12 9 904 381 | HEX NUT WITH PLATE - M5-8-ZNNIV SI | 1 | |
| 9 | 52 53 7 664 664 | BUMP STOP - H=10 | 1 |
